DAMAGED ENGINE HOUSING?

WE GET YOUR ENGINE RUNNING AGAIN

Cast iron welding is theoretically possible, but the high carbon content makes the material hard and brittle. That‘s exactly what should be avoided at dynamic loads and why Metalock has developed a specialized and certified „cold repair process“.
Thanks to the integration of so-called Metalock Keys the process is a sustainable, safe and effective repair of cast iron – without welding, without heat distortion and in many cases even without dismantling.

We have put together three interesting repair cases as examples – see for yourself:

OUR SUCCESS STORIES

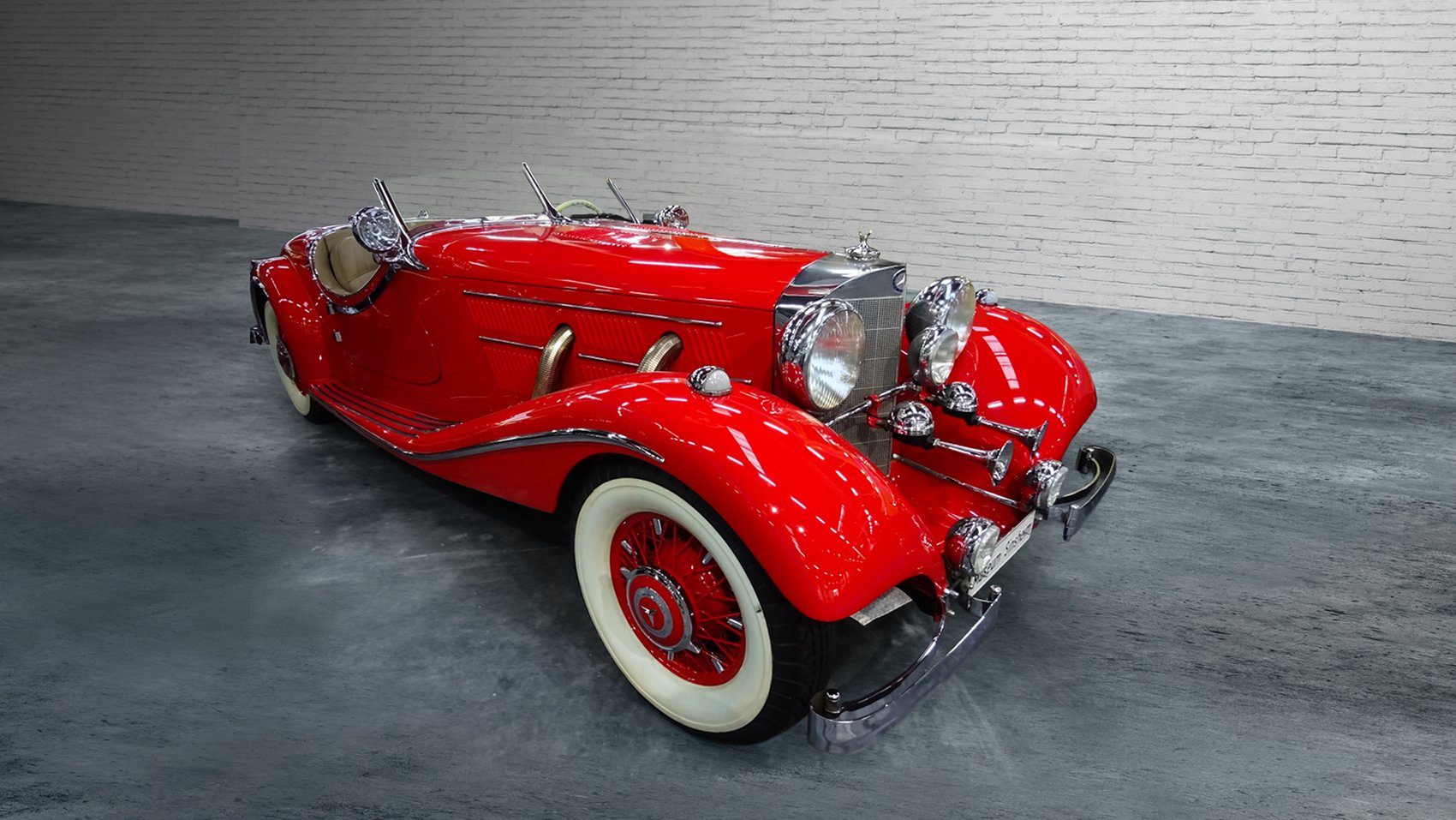

CASE 1 – MERCEDES-BENZ 540K

A particularly rare piece from the 30s. Even though the long-stroke eight-cylinder in-line engine with 5 l capacity is solidly designed, fatigue damages of the material after many decades may arise or components like conrods break through the engine housing when the crankshaft is getting defective.

[Translate to Englisch:] Mercedes-Benz 540 K
[Translate to Englisch:] Ein Teil des Motorgehäuses ist herausgebrochen ...

In this case, however, a frost damage occurred. Our customer tried to cover the broken area with a screwed plate – unfortunately without success. We inspected the area structurally and defined the corresponding cutouts.

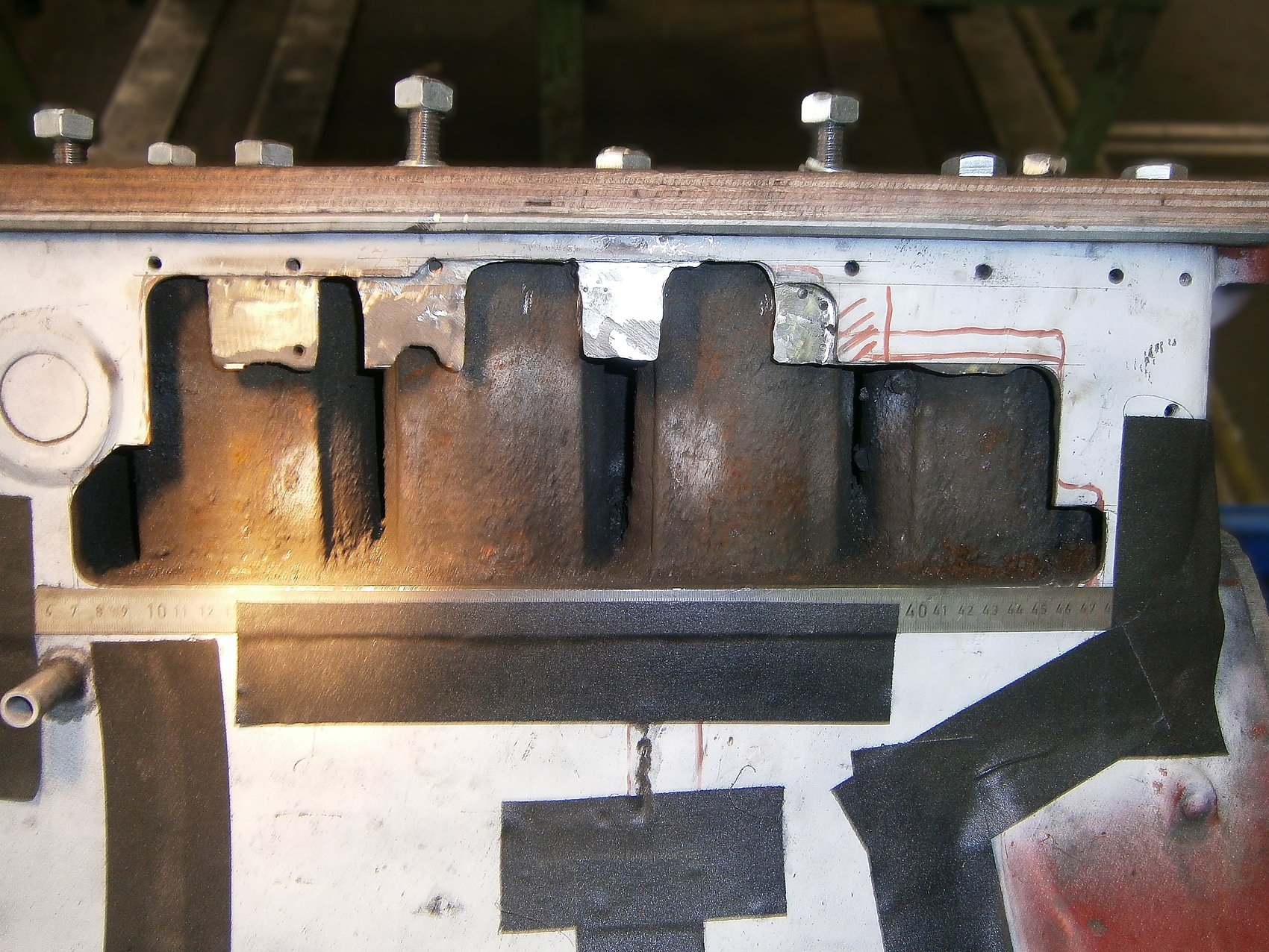

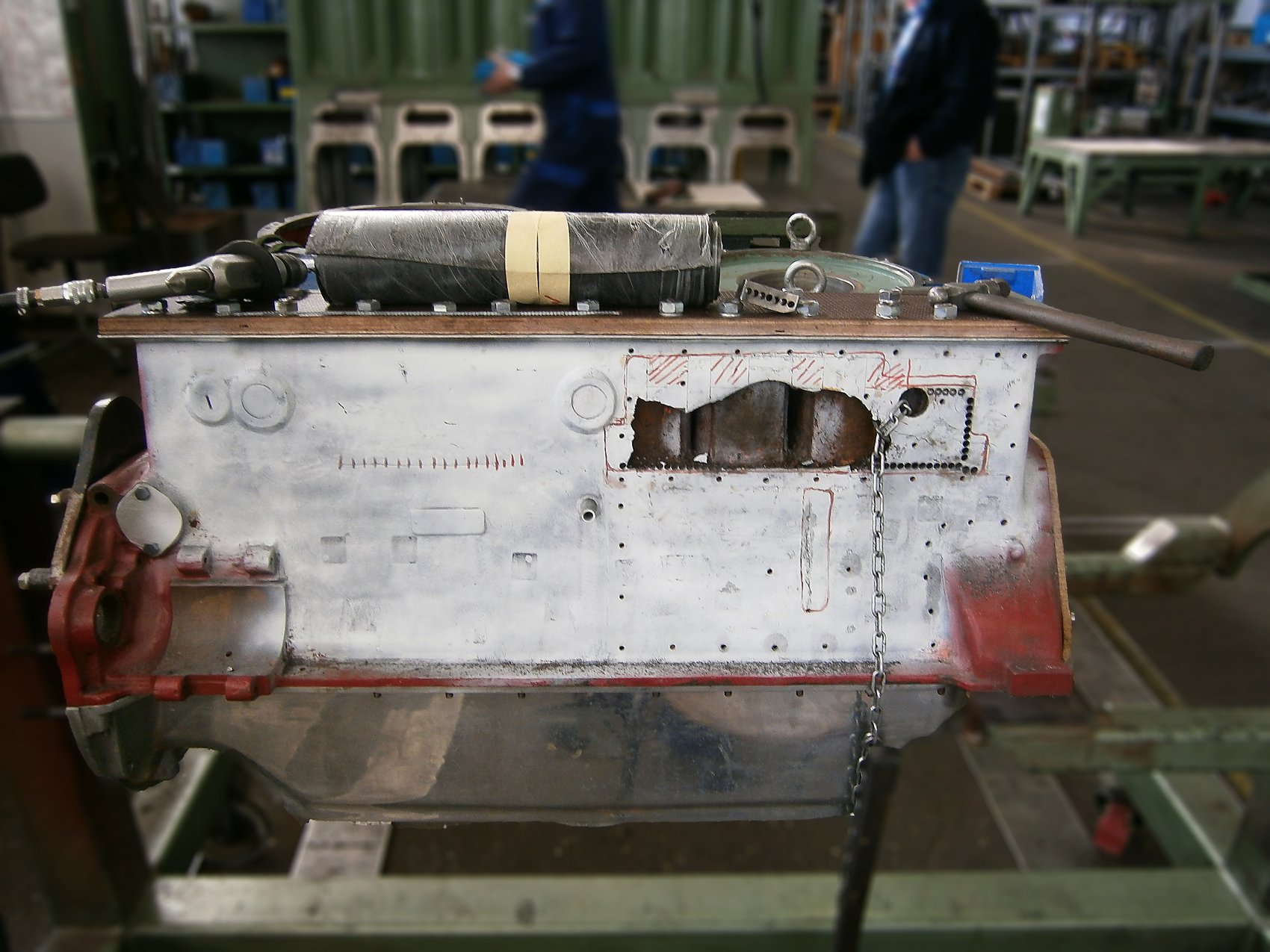

The area to be repaired is cut out and prepared for the „Metalocking“. Then a new fitting is individually manufactured and seated.

[Translate to Englisch:] Vorbereitung für das "Metalocken"

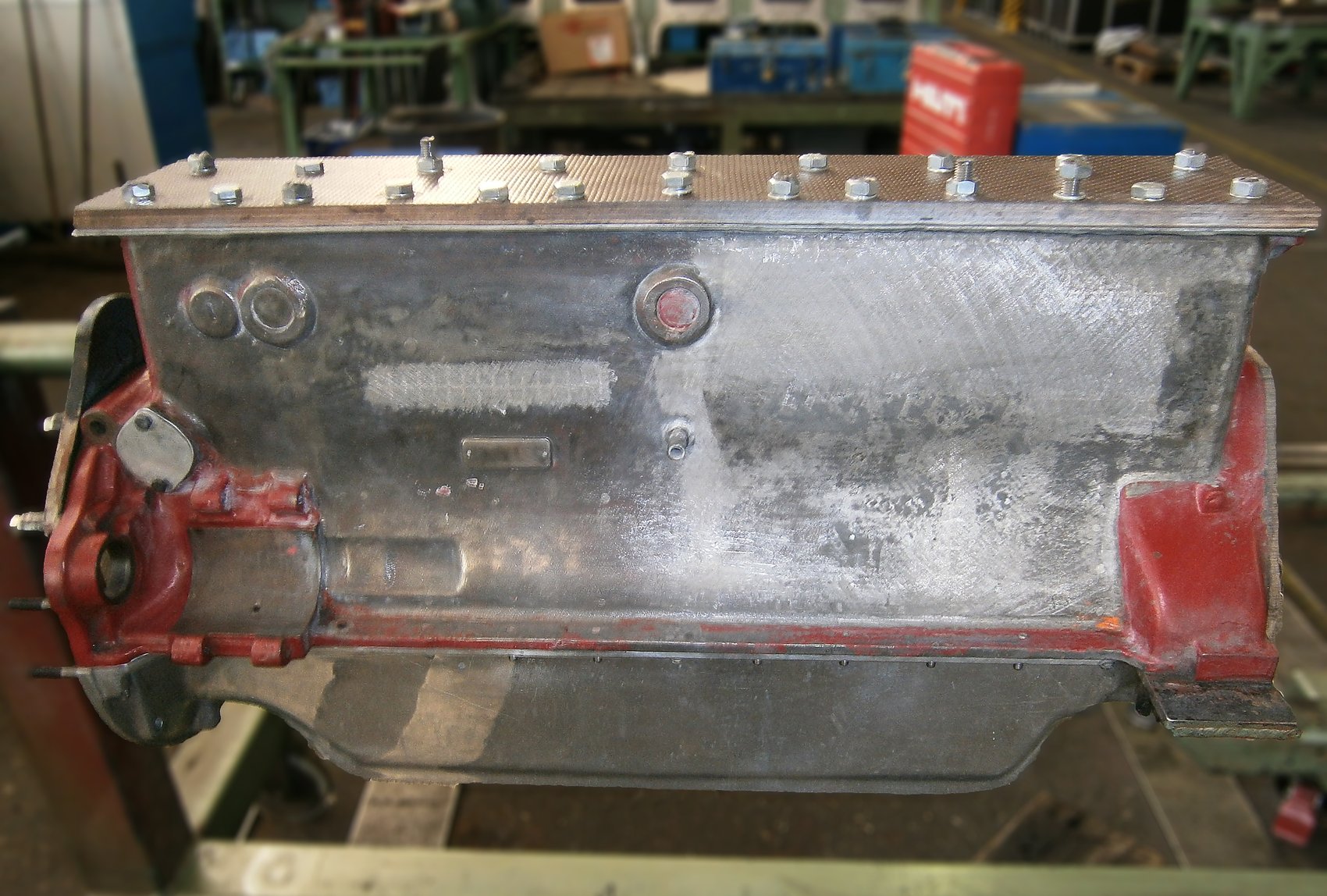

[Translate to Englisch:] Finales Verschleifen des Gehäuses

The repair is successfully performed, the housing has already been roughly grinded. In the next step the tightness will be checked with a water pressure test.

CASE 2 – MERCEDES-BENZ CLASSIC CAR ENGINE

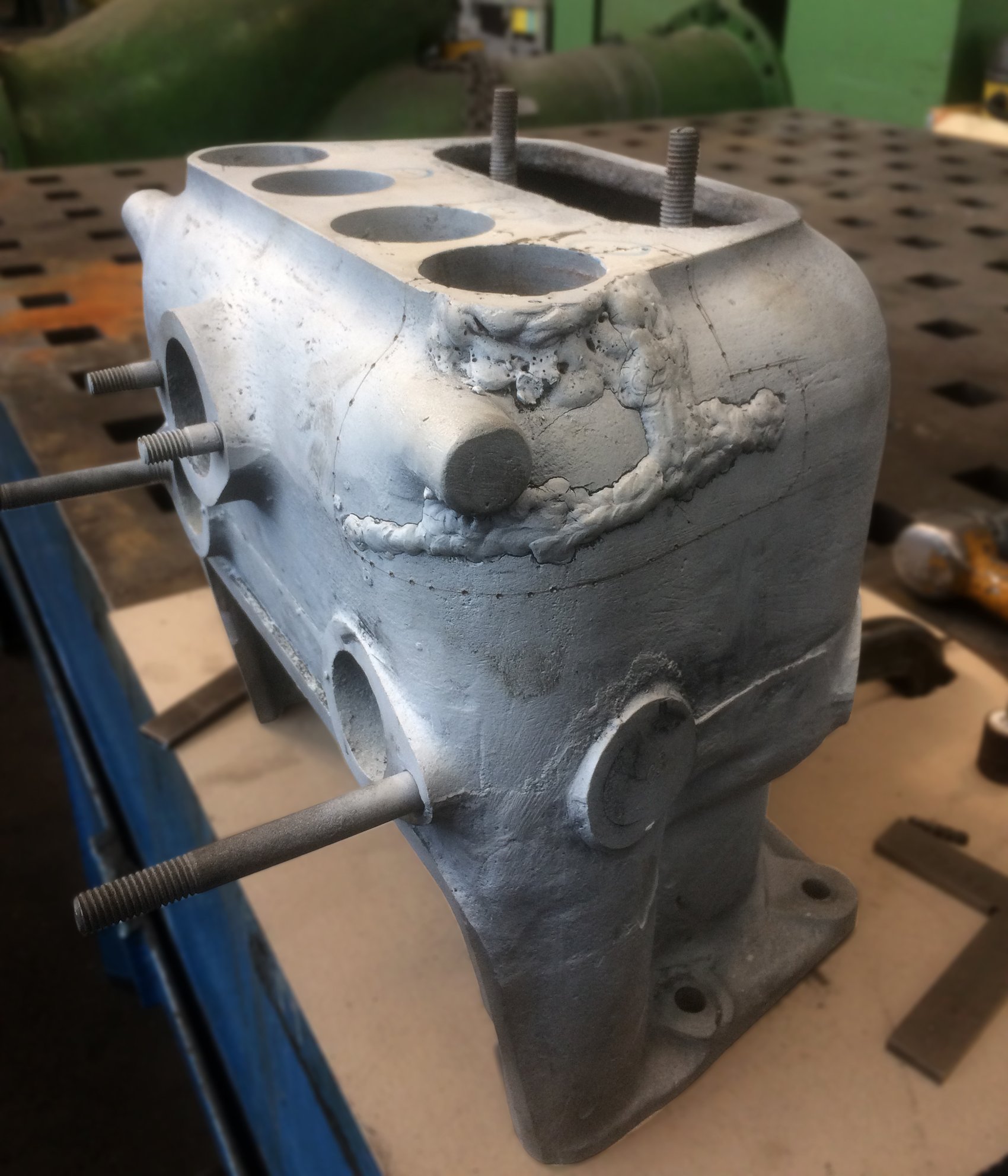

Also, in this case it is a repair project of a damaged housing, where even one of the four cylinders had been affected. The customers‘ welding attempts couldn‘t solve the problem ...

[Translate to Englisch:] Gehäuseschaden mit missglücktem Schweißversuch
[Translate to Englisch:] Ausarbeiten der Reparaturstelle

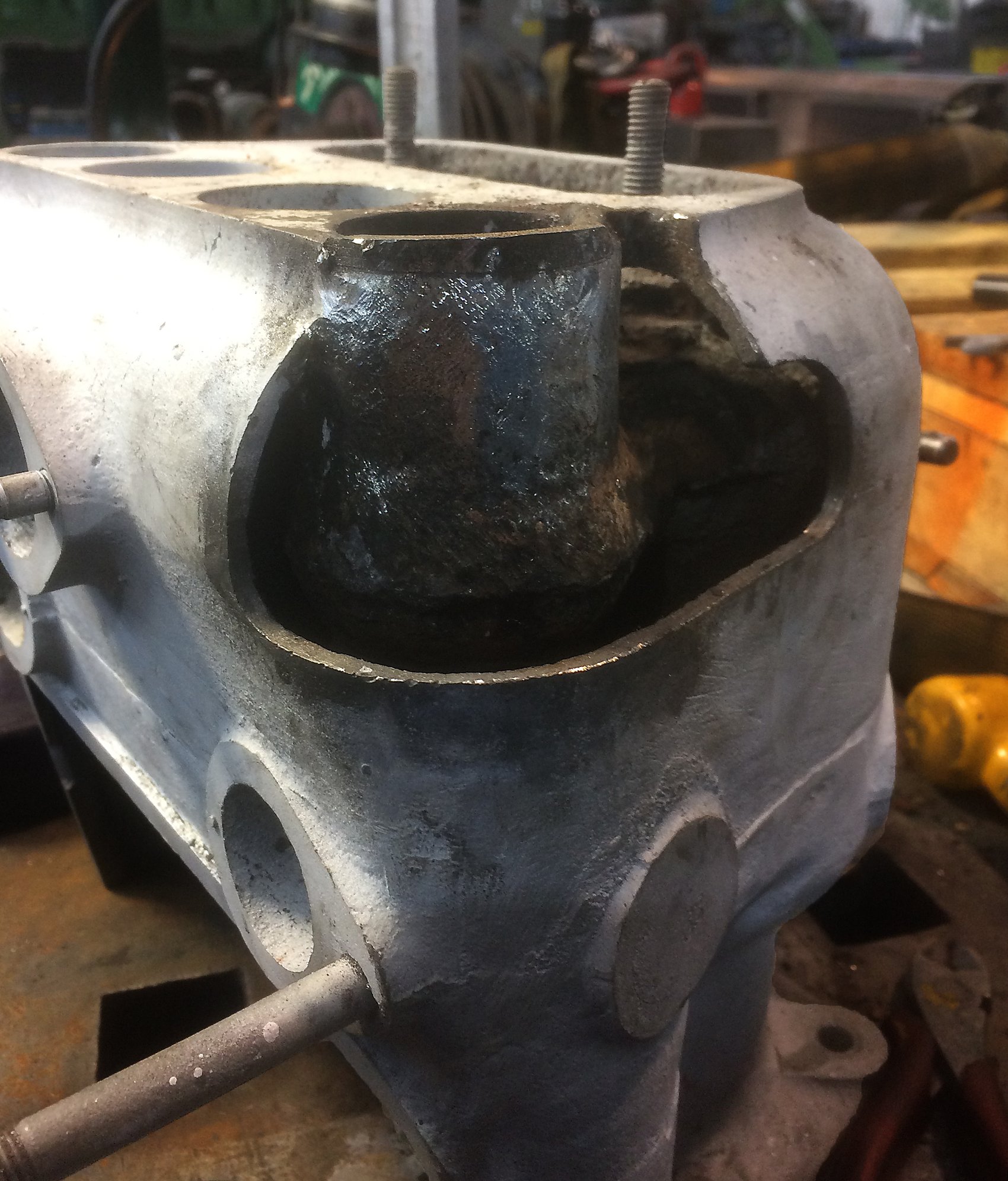

Removal of the affected housing area and preparation. In the next step a new fitting is individually manufactured and seated.

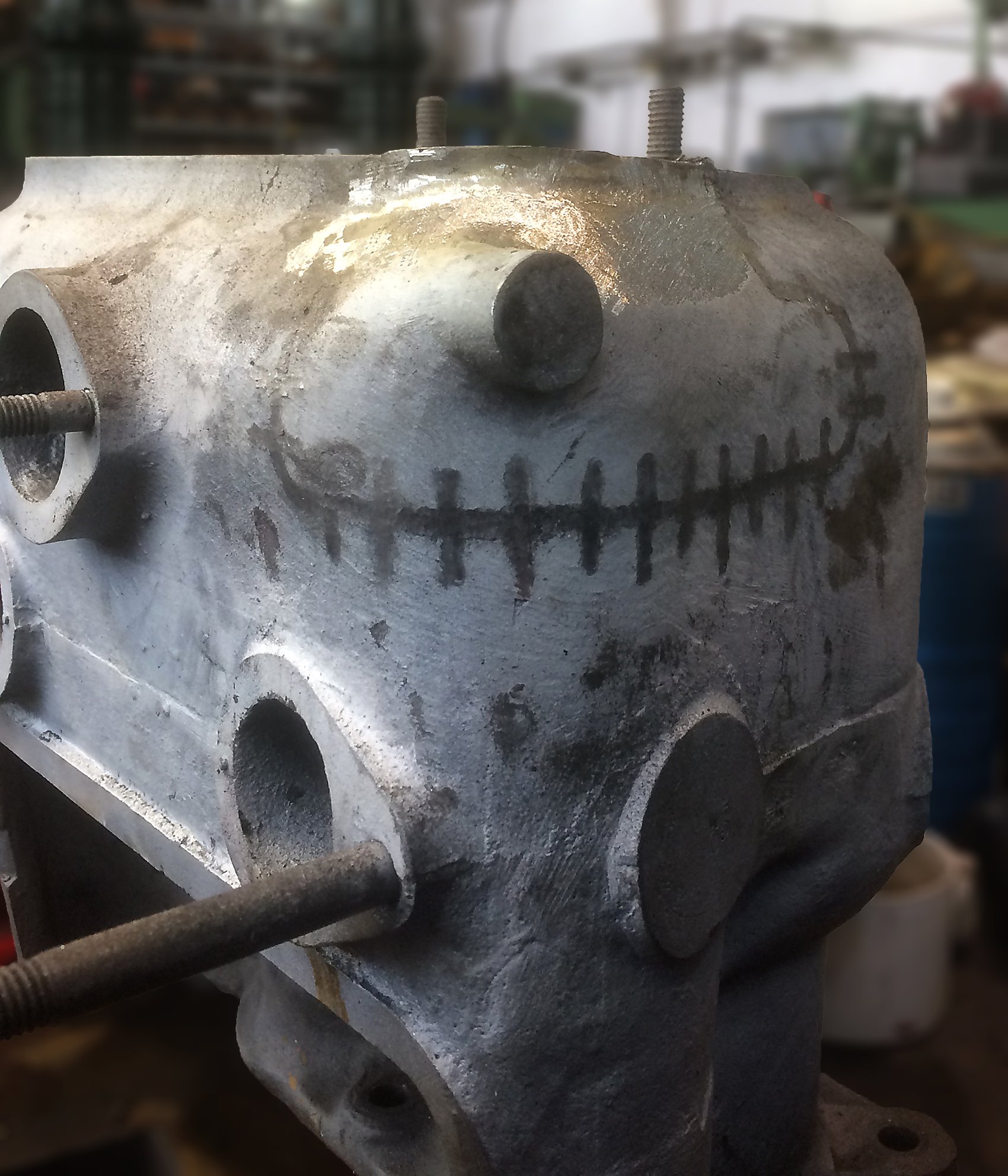

The repair has largely been completed, you can still see the inserted and pressed in Metalock Keys. The final grinding and polishing for a perfect surface is the last step – but here not documented anymore.

[Translate to Englisch:] Die Reparatur ist im Wesentlichen abgeschlossen, der Feinschliff erfolgt im letzten Schritt.

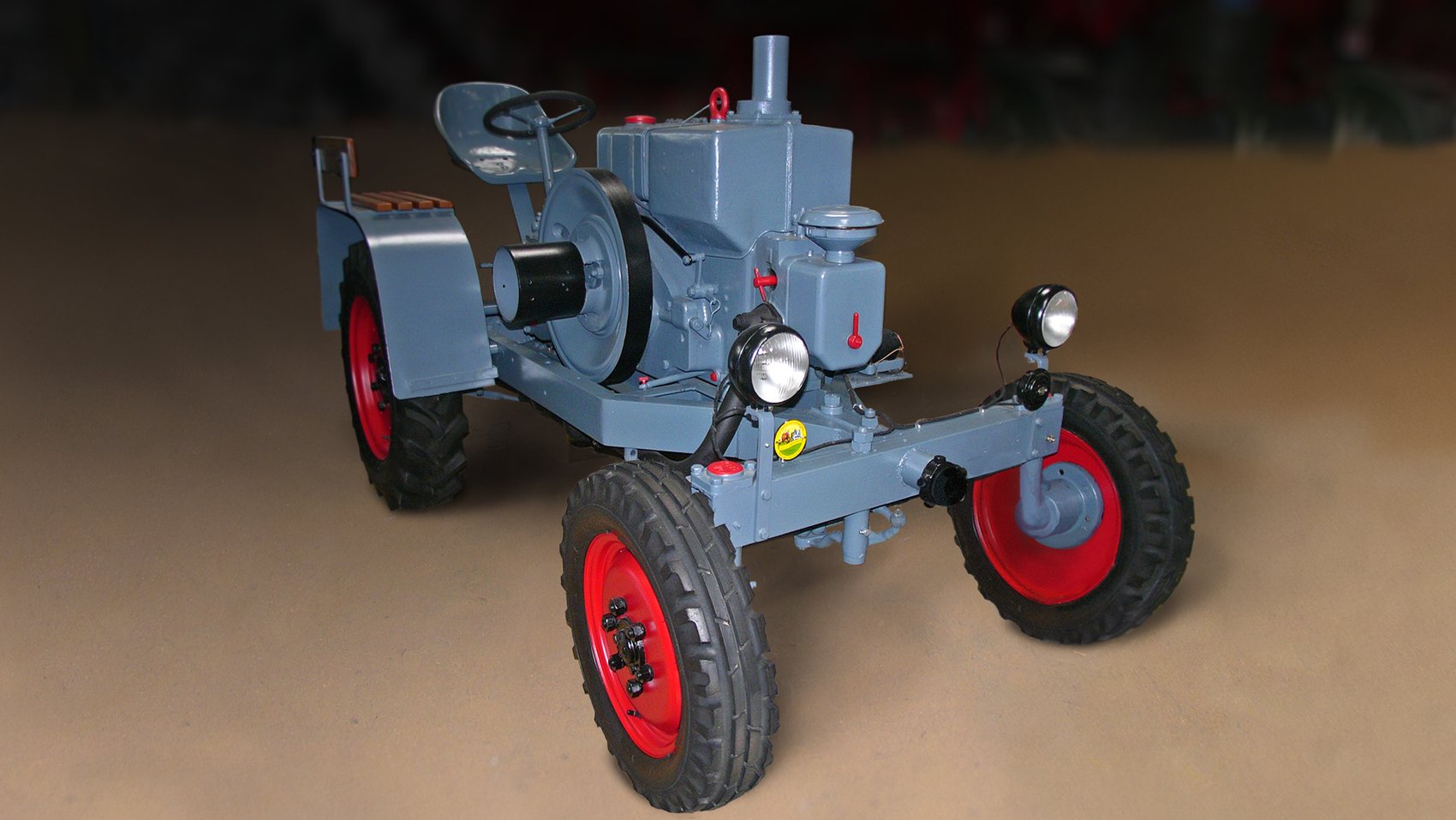

[Translate to Englisch:] KRAMER Traktor – ein Klassiker aus den 20er/30er Jahren

CASE 3 – KRAMER TRACTOR

A classic from the 20s/30s, series K. Despite its simplicity and robustness, the ravages of time may affect various units and components ...

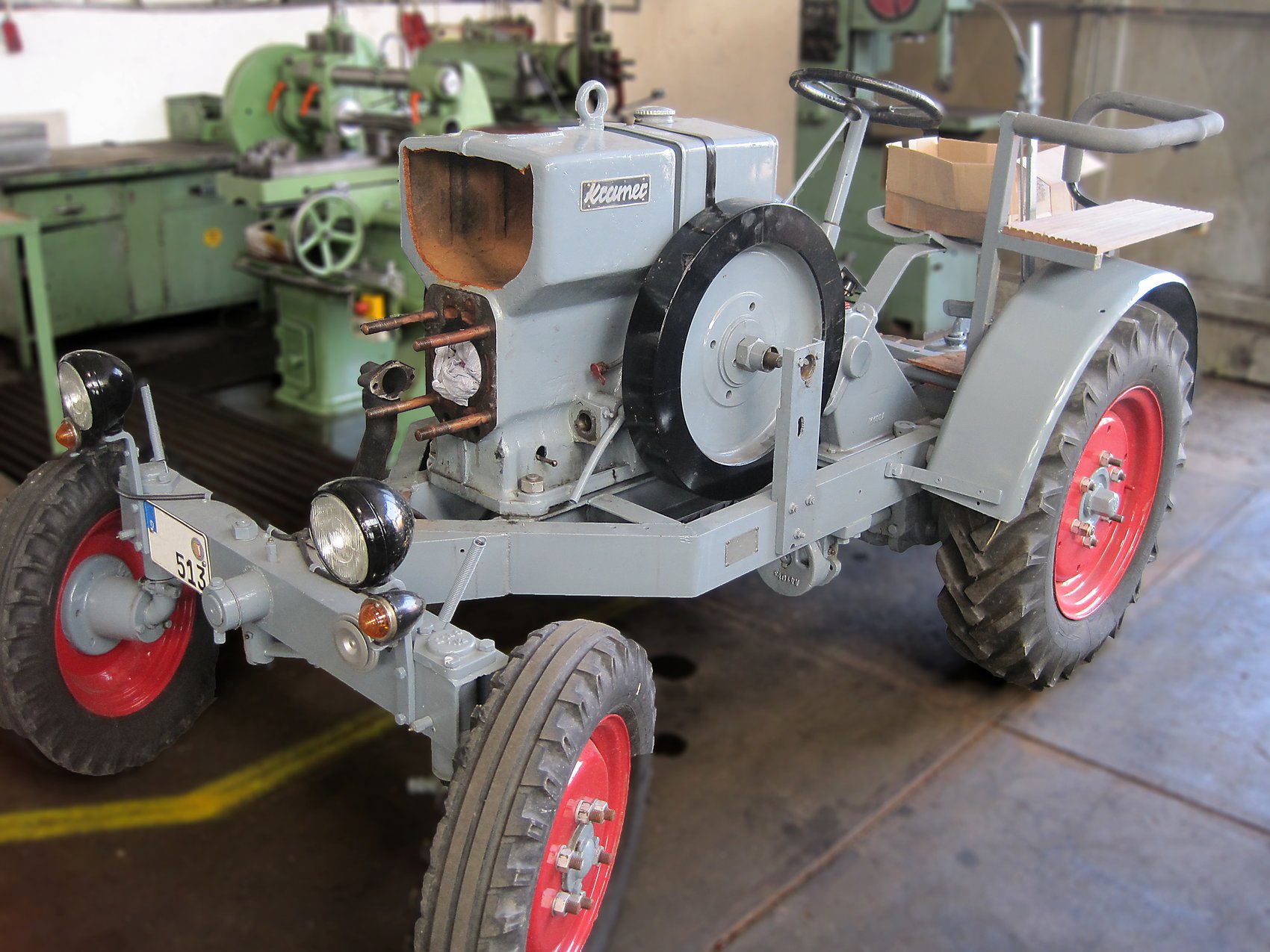

In this case, however, the front of the water tank burst, because it had not been emptied before the frost came ...

[Translate to Englisch:] Geplatzter Wasserbehälter als Frostschaden
[Translate to Englisch:] Die Metalock-Riegel sind bereits gesetzt ...

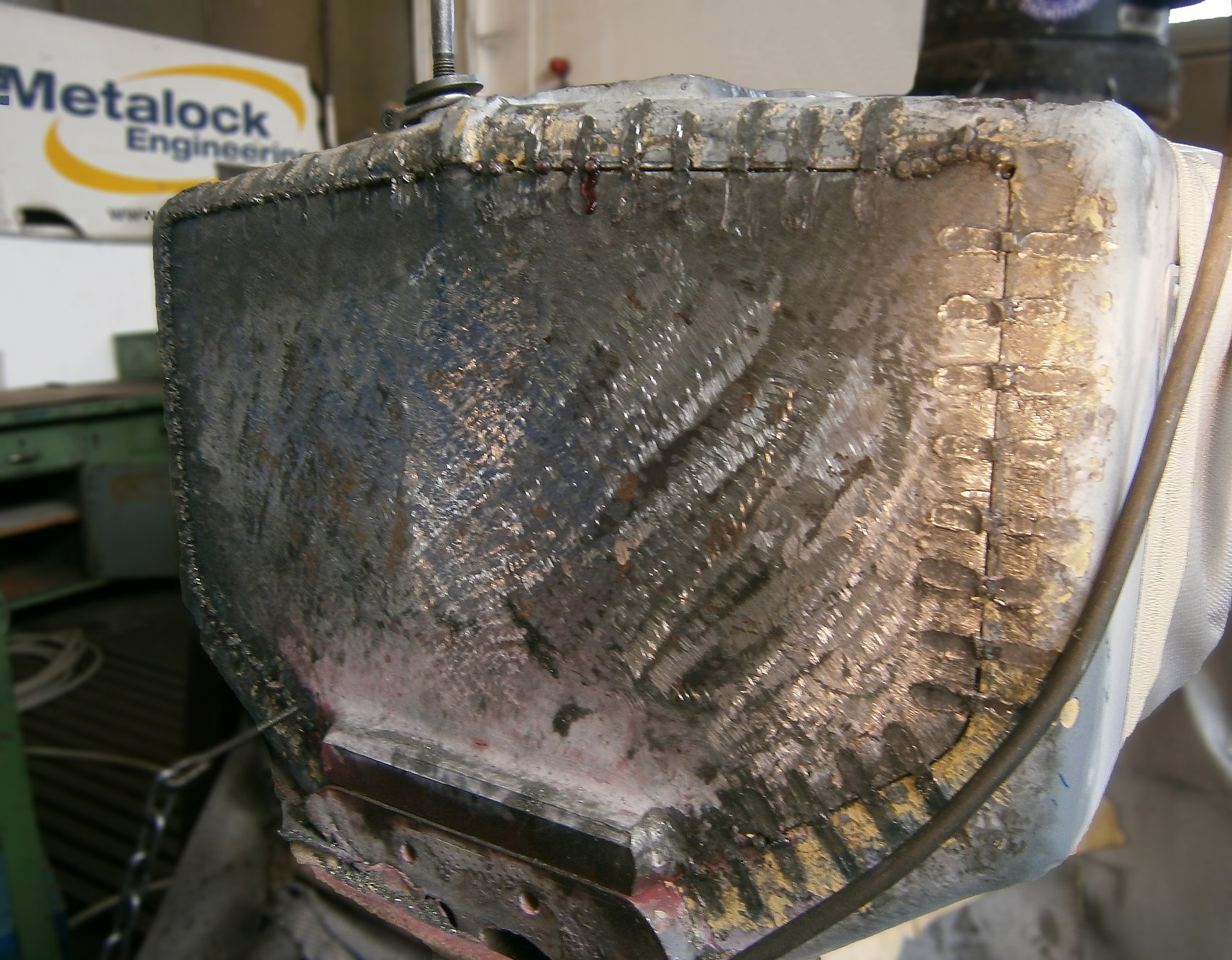

The Metalock Keys, which connect the body to the burst-out front wall, are already set. The next intermediate step is to implement the Metalock screws along the line of the fracture – on the top right the beginning of it can already been seen. The whole procedure is available as a video animation further down the page.

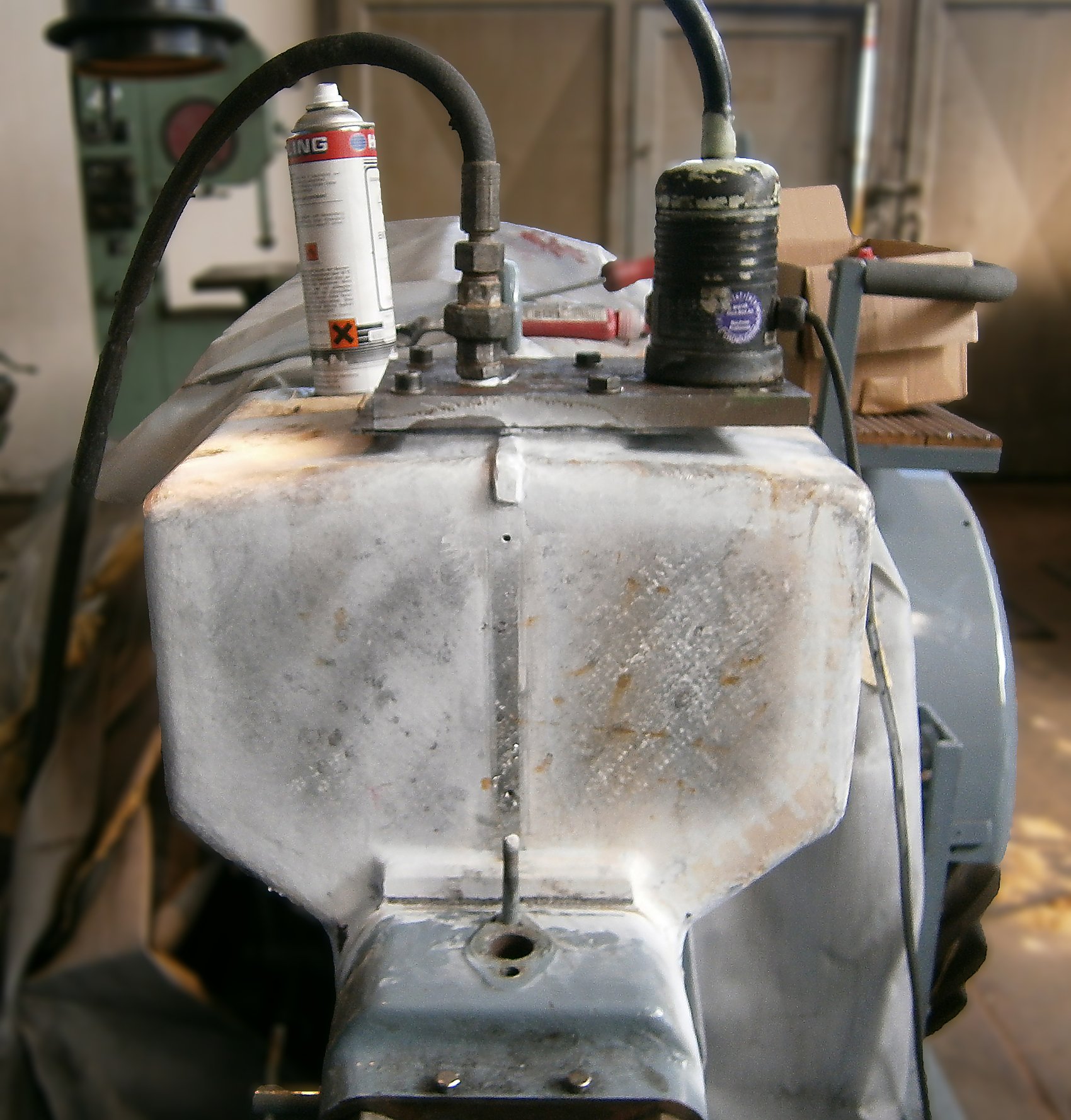

As if nothing had happened! The water tank is perfectly repaired, pressure-tight and ready for the paint finish ...

[Translate to Englisch:] Die Metalock-Reparatur ist abgeschlosen.

DOWNLOAD OUR REPAIR CASES AS PDF

If you simply want to print out our repair cases, stick them on the bulletin board or archive them digitally, you can download the corresponding PDF version at any time. We offer them in single-page view (for printing) and in double-page view (for electronic archiving or forwarding).
Please briefly fill in the following fields:


MET_REP OLDTIMER EN PDF-Info FORMULAR

REQUEST INFO-PDF
*Required

HOW DOES "METALOCKING" WORK?

COLD PROCESS FOR CRACKED OR BROKEN CASTING PARTS

The Metalock process is a simple but very effective method to repair breaks and cracks in cast iron components without welding. This “locking method” is recognized worldwide and registered in the Lloyd Register for the repair of certain components under certificate number MNDE / REP / 0017/06.



THE FOUR ESSENTIAL REPAIR STEPS ARE:



HOW YOU BENEFIT

Time
Savings

No
Disassembly

Gas-/Oil-&
Pressure-tight

No Heat
Distortion

Cost
Savings

Certified
Process

CONTACT US NOW

HOW TO USE THE METALOCK PROCESS FOR YOUR CLASSIC CAR

We would be happy to inform you in advance or help you immediately in the event of an emergency. Please do not hesitate to contact us. You can reach us via the contact form or at metalock-repair(at)metalock.de. In urgent cases, please use our 24-hour Emergency Hotline.




MET_REP OLDTIMER EN KONTAKTFORMULAR

TOP

CONTACT FORM

LEFT
RIGHT
BOTTOM
* Required

ABOUT METALOCK ENGINEERING GERMANY

RELIABLE SERVICES & REPAIRS SINCE 1952

As part of the MIDROC Metalock Group, Metalock Engineering Germany benefits from the long-standing and extensive experience of the international group. The technical know-how of the company lies in every single processing step of the Metalock processes and opens up new options for the repair of cast iron.
